Ranya Stainless stands out as a top-notch manufacturer and supplier of high-quality Stainless Steel 309H Flanges in Muscat, Oman. They specialize in providing durable and reliable solutions tailored for high-temperature and industrial piping systems. Their extensive range includes various flange types such as weld neck, slip-on, blind, socket weld, and threaded flanges, all crafted to meet international standards. Ranya Stainless caters to industries like chemical, petrochemical, power generation, furnace, and heat treatment. Their 309H flanges ensure secure, leak-proof connections and boast exceptional resistance to oxidation, scaling, and corrosion, guaranteeing long-lasting performance and reliability throughout Oman and the Middle East.
Stainless Steel 309H Flanges are crafted from a high-alloy austenitic stainless steel that features chromium and nickel, making them exceptionally resistant to oxidation and scaling at high temperatures. With a higher carbon content than 309S, these flanges enhance tensile and yield strength while still maintaining toughness and durability in extreme conditions. They are designed to withstand thermal fatigue, corrosion, and structural deformation, making them perfect for high-temperature industrial applications. Whether in furnace systems, kilns, heat exchangers, or piping networks in the chemical and petrochemical sectors, 309H flanges provide secure and long-lasting connections even in the most demanding environments.
| Specifications | ASTM A240 / ASME SA240 |
| Thickness | 4mm-100mm |
| Width | 1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm, etc |
| Length | 2000mm, 2440mm, 3000mm, 5800mm, 6000mm, etc |
| Surface | 2B, 2D, BA, NO.1, NO.4, NO.8, 8K, mirror, checkered, embossed, hairline, sand blast, Brush, etching, etc |
| Finish | Hot rolled plate (HR), Cold rolled sheet (CR), 2B, 2D, BA NO(8), SATIN (Met with Plastic Coated) |
| Form | Coils, Foils, Rolls, Plain Sheet, Shim Sheet, Perforated Sheet, Chequered Plate, Strip, Flats, Blank (Circle), Ring (Flange) etc. |
| ASTM A182 GRADE | C | Mn | P | S | Si | Ni | Cr | Mo | Nb | Ti | Others |
|---|---|---|---|---|---|---|---|---|---|---|---|
| F304(1) | 0.08 | 2.0 | 0.045 | 0.030 | 1.0 | 8.0-11.0 | 18.0-20.0 | ||||
| F304H | 0.04-0.10 | 2.0 | 0.045 | 0.030 | 1.0 | 8.0-11.0 | 18.0-20.0 | ||||
| F304L(1) | 0.030 | 2.0 | 0.045 | 0.030 | 1.0 | 8.0-13.0 | 18.0-20.0 | ||||
| F304N(2) | 0.08 | 2.0 | 0.045 | 0.030 | 1.0 | 8.0-10.5 | 18.0-20.0 | ||||
| F304LN(2) | 0.030 | 2.0 | 0.045 | 0.030 | 1.0 | 8.0-10.5 | 18.0-20.0 | ||||
| F309H | 0.04-0.10 | 2.0 | 0.045 | 0.030 | 1.0 | 12.0-15.0 | 22.0-24.0 | ||||
| F310 | 0.25 | 2.0 | 0.045 | 0.030 | 1.0 | 19.0-22.0 | 24.0-26.0 | ||||
| F310H | 0.04-0.10 | 2.0 | 0.045 | 0.030 | 1.0 | 19.0-22.0 | 24.0-26.0 | ||||
| F310MoLN | 0.030 | 2.0 | 0.030 | 0.015 | 0.40 | 21.0-23.0 | 24.0-26.0 | 2.0-3.0 | N 0.10-0.16 | ||
| F316 | 0.08 | 2.0 | 0.045 | 0.030 | 1.0 | 10.0-14.0 | 16.0-18.0 | 2.0-3.0 | |||
| F316H | 0.04-0.10 | 2.0 | 0.045 | 0.030 | 1.0 | 10.0-14.0 | 16.0-18.0 | 2.0-3.0 | |||
| F316L(1) | 0.030 | 2.0 | 0.045 | 0.030 | 1.0 | 10.0-15.0 | 16.0-18.0 | 2.0-3.0 | |||
| F316N(2) | 0.08 | 2.0 | 0.045 | 0.030 | 1.0 | 11.0-14.0 | 16.0-18.0 | 2.0-3.0 | |||
| F316LN(2) | 0.030 | 2.0 | 0.045 | 0.030 | 1.0 | 11.0-14.0 | 16.0-18.0 | 2.0-3.0 | |||
| F316Ti | 0.08 | 2.0 | 0.045 | 0.030 | 1.0 | 10.0-14.0 | 16.0-18.0 | 2.0-3.0 | (3) | N 0.10 max | |
| F317 | 0.08 | 2.0 | 0.045 | 0.030 | 1.0 | 11.0-15.0 | 18.0-20.0 | 3.0-4.0 | |||
| F317L | 0.030 | 2.0 | 0.045 | 0.030 | 1.0 | 11.0-15.0 | 18.0-20.0 | 3.0-4.0 | |||
| F321 | 0.08 | 2.0 | 0.045 | 0.030 | 1.0 | 9.0-12.0 | 17.0-19.0 | (4) | |||
| F321H | 0.04-0.10 | 2.0 | 0.045 | 0.030 | 1.0 | 9.0-12.0 | 17.0-19.0 | (5) | |||
| F347 | 0.08 | 2.0 | 0.045 | 0.030 | 1.0 | 9.0-13.0 | 17.0-20.0 | (6) | |||
| F347H | 0.04-0.10 | 2.0 | 0.045 | 0.030 | 1.0 | 9.0-13.0 | 17.0-20.0 | (7) | |||
| F348 | 0.08 | 2.0 | 0.045 | 0.030 | 1.0 | 9.0-13.0 | 17.0-20.0 | (6) | Co 0.20 Ta 0.10 | ||
| F348H | 0.04-0.10 | 2.0 | 0.045 | 0.030 | 1.0 | 9.0-13.0 | 17.0-20.0 | (7) | Co 0.20 Ta 0.10 |
| ASTM A182 Grade | Minimum Tensile Strength in MPa | Minimum Yield point in Mpa | Minimum Elongation in % | Minimum Reduction of in min, % |
| Stainless Steel Flanges | 515 | 205 | 30 | 50 |
Contact us to get a quick quote for your requirement.
We provides Stainless Steel 309H Flanges- Ranya Stainless,which has undergone intense testing to produce top quality and performance. The flange is thoroughly tested for meeting international standards and specifications. Products supplied by us are certified by recognized authorities for traceability and reliability in each batch. With modern technology and strict quality control, we ensure durability, corrosion resistance, and good mechanical properties. Ranya Stainless stands by the delivery of flanges with the highest level of industry standards in functionality and safety.

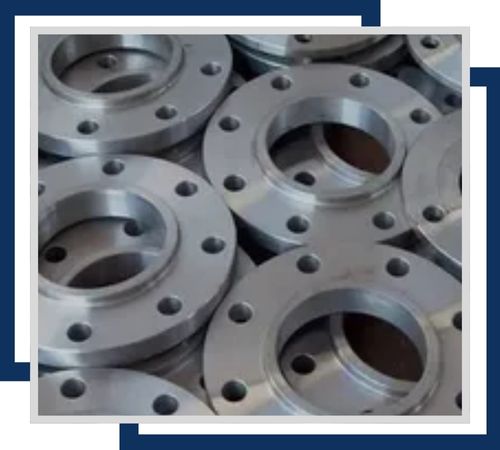

The SS 1.4833 socket weld flange, known for its excellent high-temperature and corrosion resistance, provides a secure, durable connection in critical applications, ensuring performance and reliability in harsh industrial environments.

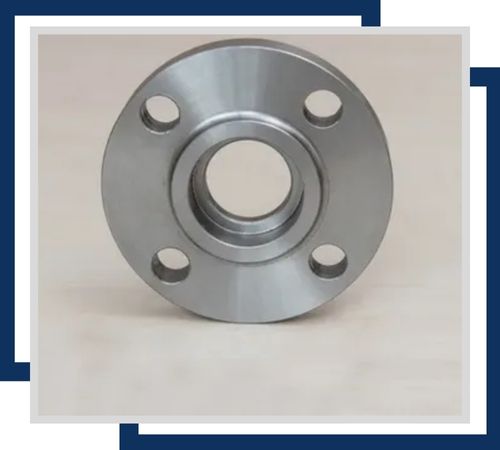

The ASTM A182 F309 ring-type joint flange offers exceptional high-temperature strength and corrosion resistance. It ensures reliable, leak-proof connections in demanding environments, making it ideal for critical industrial applications.
UNS S30900 spectacle blind flanges deliver superior high-temperature strength and corrosion resistance. Ideal for pipeline isolation and maintenance, these flanges ensure robust, reliable performance in demanding industrial settings.
Stainless Steel 309H Flanges are a go-to choice in industries that need heat-resistant, corrosion-resistant, and durable piping connections. They excel in high-temperature process piping, boilers, furnace lines, kilns, and heat exchangers, particularly in chemical, petrochemical, and power generation plants. Moreover, 309H flanges find their place in metallurgy, food processing, and manufacturing sectors where thermal stability and mechanical strength are crucial.
