Ranya Stainless stands out as a top-notch manufacturer and supplier of high-quality Stainless Steel 309H Forged Fittings in Muscat, Oman. They provide robust and dependable solutions tailored for high-temperature and industrial piping systems. Their extensive selection of forged fittings includes elbows, tees, reducers, and couplings, all meticulously crafted to adhere to international standards. These fittings are commonly utilized in sectors like chemical, petrochemical, power generation, furnace, and heat treatment industries. Ranya Stainless guarantees that each 309H forged fitting offers secure, leak-proof connections, boasting remarkable strength, corrosion resistance, and oxidation resistance, making them the go-to choice for demanding industrial applications throughout Oman and the Middle East. **(100 words)**
Stainless Steel 309H Forged Fittings are crafted from a high-alloy austenitic stainless steel that features chromium and nickel, along with a higher carbon content compared to 309S, which enhances their tensile and yield strength. This alloy is known for its outstanding resistance to oxidation, scaling, and corrosion at elevated temperatures, making these fittings perfect for high-temperature and high-stress industrial settings. On a mechanical level, 309H forged fittings are designed to withstand thermal fatigue, structural deformation, and stress corrosion cracking. These characteristics make them ideal for use in furnaces, kilns, heat exchangers, high-temperature piping systems, and chemical processing equipment where long-lasting durability and performance are essential. **(90 words)**
| Specifications | ASTM A403 / ASME SA403, ASTM A182 & ASME SA182 |
| Forged Fittings Standards | ASME 16.11, MSS SP-79, 83, 95, 97, BS 3799 |
| Buttweld Fittings Dimensions | ASME/ANSI B16.9, ASME B16.28, MSS-SP-43 |
| Buttweld Fittings Size | 1/8” NB TO 48” NB. (Seamless & 100% X-Ray Welded, Fabricated) |
| Forged Fittings Size | 1/8” NB to 4” NB (Socketweld & Screwed-Threaded) |
| Buttweld Fittings Type | Seamless / Welded / Fabricated |
| Forged Fittings Type | Socketweld Fittings, Screwed-Threaded Fittings |
| Forged Fittings Class | 2000 LBS, 3000 LBS, 6000 LBS, 9000 LBS |
| Buttweld Fittings Bending Radius | R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom |
| Buttweld Fittings Thickness | Sch 5s, Sch 10s, Sch 40s, Sch 80s, Sch 160s, Sch XXS |
| Grade | C | Mn | Si | P | S | Cr | Ni | Fe | |
| SS 309H | 0.04-0.10 | 2.0 | 0.75 | 0.045 | 0.03 | 22.0-24.0 | 15.0 | 58.0-63.0 | |
| Grade | Tensile Strengtd ksi (min) | Yield Strength 0.2% ksi (min) | Elongation % | Hardness (Brinell) max |
| 309H | 40 | 30 | 40 | 217 |
Contact us to get a quick quote for your requirement.
All Stainless Steel 309H Forged Fittings produced at Ranya Stainless are stringently tested for quality and performance. Every product is certified to international standards, including ISO, ASTM, and ASME specifications. The material analysis, hardness, tensile strength, and pressure test are also conducted on the entire range for reliability and adherence to different industrial applications.
Corrosion-resistant and durable Stainless Steel 309H Socket Weld Fittings are used in high-temperature applications. They typically come in sizes ranging from 1/4″ to 4″, designed to withstand pressures up to 3000 psi, offering a reliable connection in critical systems.

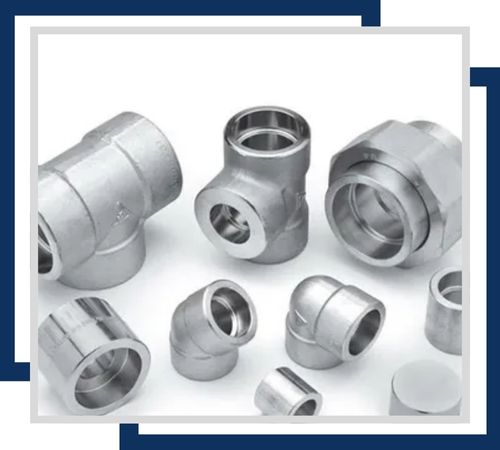

Known for excellent corrosion resistance, Stainless Steel 309H Threaded Fittings are ideal for high-temperature environments. They are available in sizes from 1/8″ to 6″, featuring standard threading for easy assembly and disassembly, making them suitable for various piping systems.

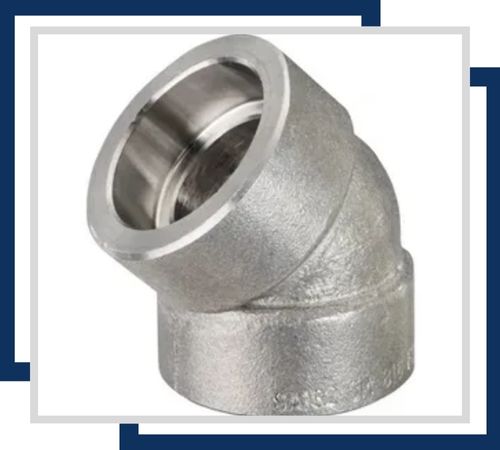

The Stainless Steel 309H Socket Weld 45 Degree Elbow has outstanding corrosion resistance and is designed for directional changes in piping systems. It comes from 1/2″ to 4″, offering a durable solution for high-temperature and high-pressure applications.

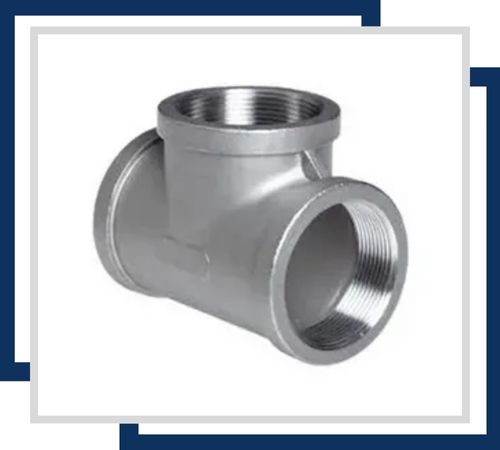

Stainless Steel 309H Threaded Tee offers superior corrosion resistance and creates branches in piping systems. Available in sizes ranging from 1/8″ to 6″, it ensures strong, leak-proof connections and is suited for high-temperature and pressure applications.

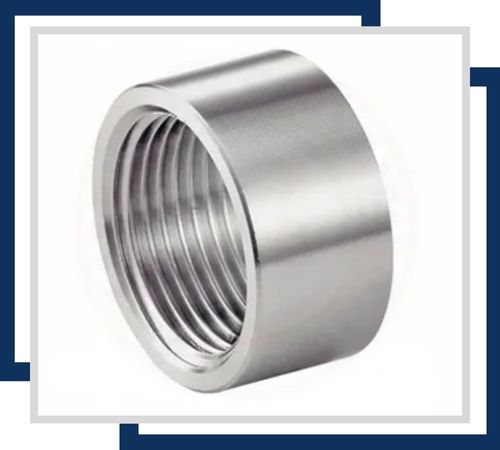

The Stainless Steel 309H Threaded Half Coupling offers excellent corrosion resistance and connects pipes of the same size. Sizes range from 1/8″ to 6″, designed for high-temperature environments, providing robust and secure fittings in piping systems.

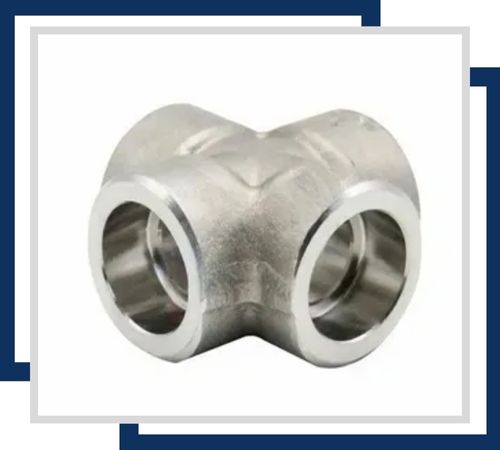

The Stainless Steel 309H Socket Weld Cross has excellent corrosion resistance and allows for four-way connections in piping systems. Available in sizes from 1/2″ to 4″, it is ideal for high-temperature applications and offers a durable solution for complex pipe layouts.
Stainless Steel 309H Forged Fittings are extensively utilized in industries that demand heat-resistant, corrosion-resistant, and durable piping solutions. They excel in high-temperature piping systems, boilers, furnaces, kilns, heat exchangers, and chemical process lines. Industries such as power generation, petrochemical, and metallurgy depend on 309H forged fittings for secure, leak-proof, and long-lasting connections, ensuring reliability in their operations.
