Ranya Stainless, located in Muscat, Oman, is a trusted manufacturer and supplier of high-quality Stainless Steel 316Ti Tubing, designed to meet the demands of modern industries. Known for its durability, corrosion resistance, and high-temperature stability, our 316Ti tubing is manufactured with precision and adheres to international standards. With advanced production facilities and strict quality control, Ranya Stainless ensures each tube delivers consistent performance and long service life. Ideal for industrial, structural, and sanitary applications, our Stainless Steel 316Ti Tubing is a reliable choice for clients seeking dependable and efficient stainless steel solutions across Oman and neighboring regions.
Stainless Steel 316Ti Tubing is an austenitic stainless steel alloy stabilized with titanium, containing chromium (16–18%), nickel (10–14%), molybdenum (2–3%), and trace titanium. This composition provides excellent resistance to pitting, crevice corrosion, and high-temperature oxidation. Mechanically, 316Ti tubing offers tensile strength between 515–690 MPa, yield strength of 205–275 MPa, and good elongation, ensuring flexibility and durability. Its heat resistance, stability, and structural integrity under thermal cycling make it suitable for welded and fabricated applications in challenging industrial environments.
Tube Range : 6.35 mm OD To 101.6 mm OD Guage: 25 SWG – 10 SWG
Outer Diameter : 3.00 mm – 219.10 mm
Wall Thickness : 0.40 mm – 12.70 mm
Schedules : 5, 10S, 10, 30, 40S, 40, 80, 80S, XS, 160, XXH
Length : Upto 30 meters, Custom Cut Lengths
Specifications : ASTM A269 / ASTM SA269
Types : Round, Square, Rectangle, Coil, “U” Shape, Hydraulic & Honed Tubes
| SS | 316TI |
| Ni | 10 – 14 |
| N | 0.10 max |
| Cr | 16 – 18 |
| C | 0.08 max |
| Si | 0.75 max |
| Mn | 2 max |
| P | 0.045 max |
| S | 0.030 max |
| Mo | 2.00 – 3.00 |
| Grade | 316TI |
| Tensile Strength (MPa) min | 515 |
| Yield Strength 0.2% Proof (MPa) min | 205 |
| Elongation (% in 50mm) min | 35 |
| Hardness | |
| Rockwell B (HR B) max | 75 |
| Brinell (HB) max | 205 |
Contact us to get a quick quote for your requirement.
This steel 316Ti tubing from Ranya Stainless is thoroughly inspected for pitting and intergranular corrosion resistance, tensile strength, and hardness, apart from hydrostatic pressure testing for premium quality, and is accredited and approved to international specifications like ASTM, ASME, and ISO against each material test report.

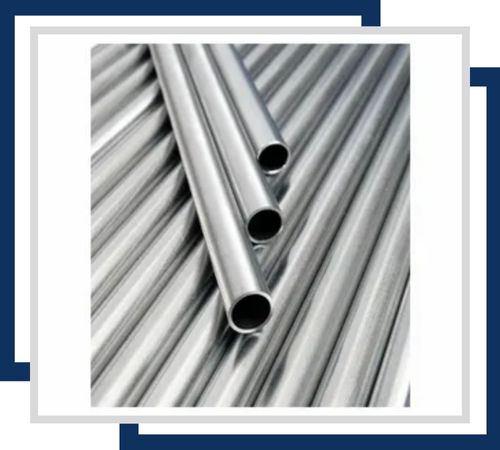

Stainless Steel 316Ti Seamless Tubing is known for its superior corrosion resistance, especially in high-temperature environments. Typically available in sizes ranging from 1/8” to 12” OD, it offers excellent mechanical properties and smooth surface finishes. Ideal for applications requiring high precision and reliability.
Stainless Steel 316Ti Welded Tubing combines excellent corrosion resistance with durability. Available in sizes from 1/8” to 24” OD, this tubing is cost-effective and versatile for various applications. It is particularly suitable for industries where high resistance to oxidizing acids is essential.

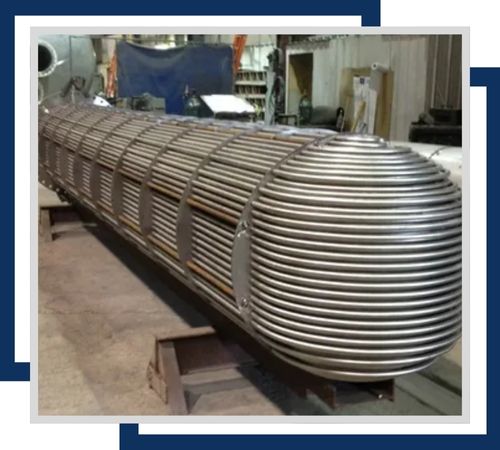

Stainless Steel 316Ti Heat Exchanger Tubes are designed for optimal thermal conductivity and corrosion resistance. These tubes come in sizes ranging from 1/4” to 2” OD, making them perfect for heat exchangers in chemical processing and power generation industries. They ensure efficient heat transfer and long service life.

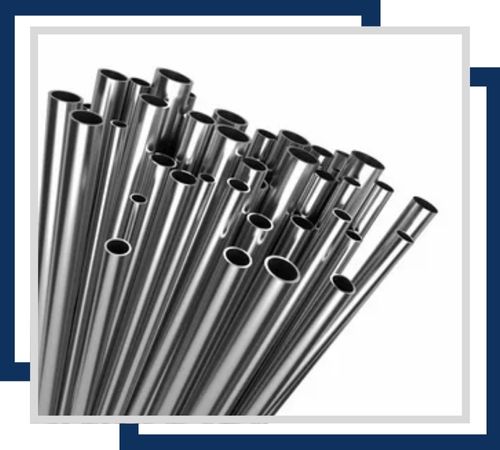

Stainless Steel 316Ti Instrumentation Tubing offers superior corrosion resistance and precision. Available in sizes from 1/16” to 1” OD, it is ideal for high-pressure and high-temperature applications in instrumentation and control systems. Ensures reliable performance and accuracy in critical applications.

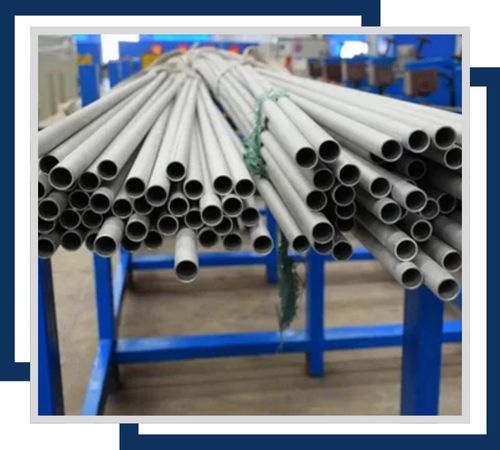

Stainless Steel 316Ti Boiler Tubes are engineered for high temperature and pressure conditions. Sizes range from 1/2” to 5” OD, providing excellent resistance to oxidation and corrosion. These tubes are essential for maintaining efficiency and longevity in boiler systems

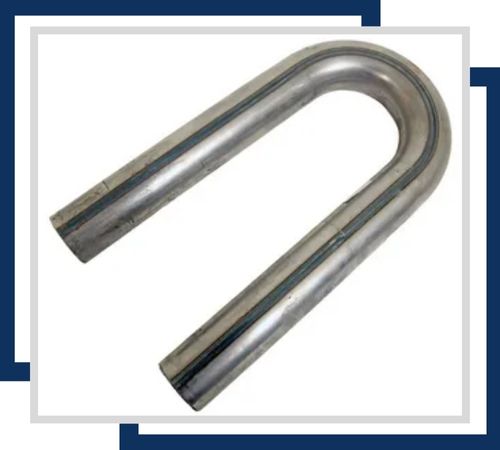

Stainless Steel 316Ti U-Tubes are designed for heat exchangers and boiler systems where space-saving is crucial. Available in sizes from 1/4” to 1” OD, they offer exceptional corrosion resistance and flexibility in design. Ideal for applications requiring compact and efficient thermal transfer solutions

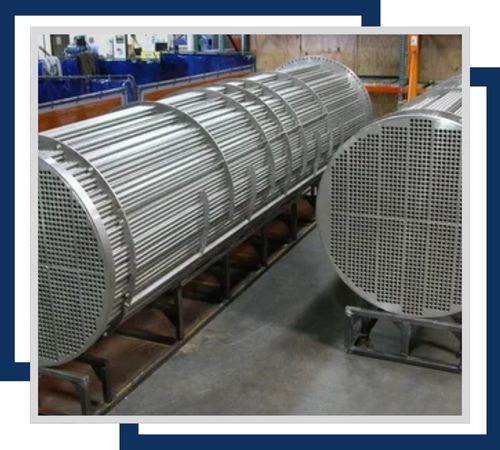

Stainless Steel 316Ti Condenser Tubes provide excellent corrosion resistance and thermal conductivity. Sizes range from 1/4” to 2” OD, making them suitable for condensers in power plants and HVAC systems. Ensures efficient condensation and long-term performance

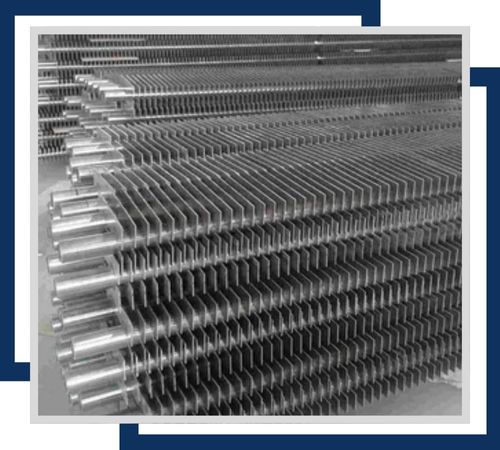

Stainless Steel 316Ti Fin Tubes enhance heat transfer efficiency while maintaining high corrosion resistance. Available in sizes from 1/4” to 1-1/2” OD, these tubes are used in heat exchangers, condensers, and evaporators. The finned design maximizes surface area for optimal thermal performance.
Stainless Steel 316Ti Tubing is widely used across industries that require corrosion-resistant, heat-stable, and durable tubing solutions. It is commonly applied in chemical processing equipment, heat exchangers, boilers, and high-temperature piping systems. The tubing is also ideal for food and beverage processing, pharmaceutical machinery, and sanitary applications due to its clean surface and resistance to contamination. Additionally, 316Ti tubing is used in petrochemical plants, marine environments, aerospace components, and power generation systems. Its ability to maintain mechanical strength and resist corrosion in extreme conditions makes it a reliable choice for industrial, commercial, and engineering applications.
