SS 415 Sheet and Plates are engineered for projects where strength, machinability, and dependable performance are non-negotiable. Designed with a smart balance of chromium and carbon, these sheets deliver powerful resistance to wear, pressure, and moderate corrosion. Whether used in heavy engineering, industrial parts, or demanding mechanical systems, SS 415 stands strong without losing its dimensional stability. Its ability to handle high loads and tough operating conditions makes it a trusted material for manufacturers. These sheets and plates bring reliability, toughness, and long life to every application, making them a preferred choice across industries that value consistency and durability.
SS 415 Sheet and Plates contain controlled levels of chromium, carbon, and manganese, which enhance strength, hardness, and machinability. This grade is specially designed for applications requiring better mechanical performance than standard stainless steels. It delivers high tensile strength, increased wear resistance, and excellent edge retention after heat treatment. SS 415 also maintains stability under stress, performing efficiently in environments with vibration, load, and friction. Its moderate corrosion resistance keeps it protected in mildly corrosive settings. This blend of strength, hardness, and toughness makes SS 415 ideal for engineering and industrial applications.
| Specifications : | ASTM A240 / ASME SA240 |
| Dimensions : | ASTM, ASME and API |
| Standard : | JIS, AISI, ASTM, GB, DIN, EN, etc. |
| Surface : | 2B, 2D, BA, NO.4, NO.8, 8K, Mirror,Checkered, Embossed, Hair Line, Sand Blast, Brush, Etching |
| Width : | 1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm,etc. |
| Finish : | Black,Bright Polished,Rough Turned,No.4 Finish,Matt Finish,BA Finish |
| Length : | 2000mm, 2440mm, 3000mm, 5800mm, 6000mm, etc. |
| Grade | C | Mn | P | S | Si | Ch | Ni | Mo |
| SS 415 | 0.05 max | 0.50-1.00 | 0.030 max | 0.030 max | 0.60 max | 11.5-14.0 | 3.5-5.5 | 0.50-1.00 |
| Tensile Strength R₃ N/mm² | 700-800 | 700-800 | 700-800 | 700-800 | 700-800 | 700-800 | 700-800 |
| 0.2% Offset Yield Strength Rᵖ ≥N/mm² | 520 | 520 | 520 | 520 | 520 | 520 | 520 |
| Elongation in 2 inches, % | 15 min | 15 min | 15 min | 15 min | 15 min | 15 min | 15 min |
| Grade | Density lbm/in3 | Melting Range(°F) | Thermal Conductivity(BTU-in/hr- ft. °F) | Electrical Resistivity(in x 10-6) | Modulus of Elasticity (psi x 106 | Coefficient of Thermal Expansion (in/in)/°F x 10-6 | Specific Heat(BTU/lb/°F) |
|---|---|---|---|---|---|---|---|
| 415 | -at 68°F: 0.280 | 2700 to 2790 | 187 at 212°F | 23.7 at 68°F | 29 | 6.0 at 32 – 212°F | 0.11 at 68°F to 212°F |
| – | – | – | – | – | 7.5 at 68 – 1200°F | – |
Contact us to get a quick quote for your requirement.
SS 415 Cold Rolled Sheets are stainless steel sheet with a bright surface finish, high strength, and excellent durability. Sheets available in various sizes between 0.3 mm to 3.0 mm thickness range and from 1000 mm to 2000 mm width with suitable applications.

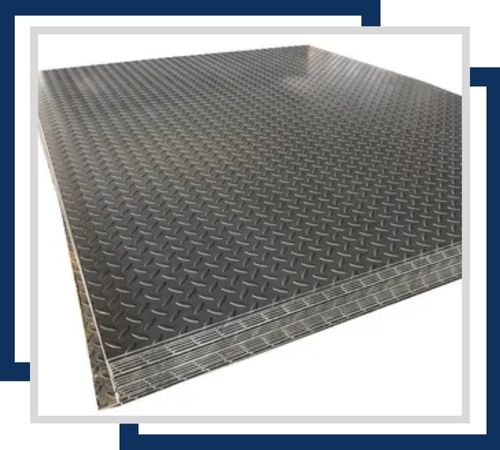

SS 415 chequered plates are stainless steel sheets with raised, textured patterns on them for maximum slip resistance and strength. It is available in various thicknesses and sizes, and it finds its application as a flooring or ramp material as well as an industrial application in the form of excellent corrosion resistance and aesthetic value.

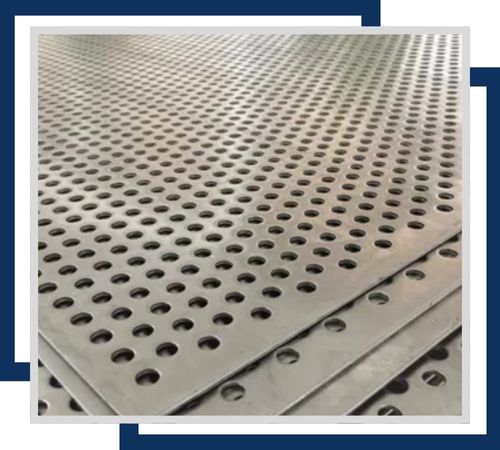

SS 415 perforated plates are of high-quality stainless steel sheets designed with precise holes to provide better ventilation, filtration, and strength. The plates can be available in a variety of sizes, with the standard being 4′ x 8′, or as custom sizes depending on the particular application in industries.

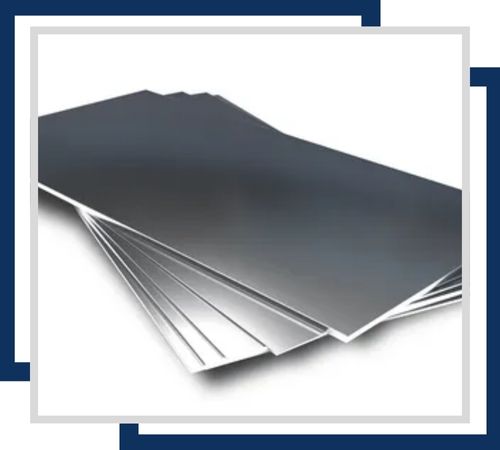

SS 415 Shim Sheets are precision engineered stainless steel sheets for industrial purposes. These have excellent corrosion resistance and strength with sizes ranging from 0.05mm to 5mm thickness and various lengths and widths, which can be customized according to the specific need.

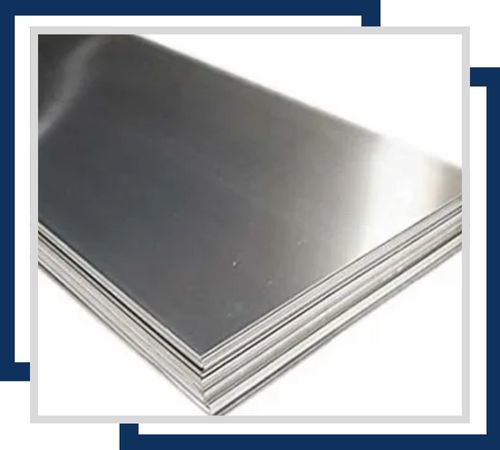

SS 415 Polished Plates are stainless steel sheets of great quality, highly recognized for corrosion resistance, strength, and shine. The SS 415 plates vary in different sizes, normally in the thickness between 0.5mm and 50mm. The product is available in any length and width as per the needs of various industrial applications.
Ranya Stainless maintains a commitment for hassle-free experiences for our esteemed customers. Here, at this company, our high-quality SS 415 Sheet and Plates shall be offered completely documented to create a better buyer-seller market. Documents as commercial invoices, Packing lists, fumigation certificates, Heat Treatment Charts, QA plans, along with the Test Reports done with NABL approvals, these add value in maintaining the genuity and outstanding quality of products produced by this unit. In addition, we provide Stainless Steel 415 Sheets and Plates with various test certificates, such as MTC according to EN 10204/3.1b, PMI Test Certificate, 100% radiography test report, and Third Party Inspection Certificates, in order to prove our commitment to product excellence and customer satisfaction.
SS 415 Sheet and Plates are widely used in engineering industries that require tough, high-strength materials. They are ideal for manufacturing gears, shafts, valves, and mechanical components exposed to stress and repeated movement. Heavy machinery manufacturers rely on this grade for parts that must withstand impact and long operational cycles. It is also used in pump components, fasteners, industrial tools, and automotive elements where durability is essential. Fabricators use SS 415 for precision parts because it machines well and maintains accuracy. Its dependable performance in demanding conditions makes it a trusted choice across critical engineering and industrial sectors.
