Home > Sheet and Plates > Stainless Steel 316/316L Sheet and Plates
Ranya Stainless stands out as a premier manufacturer and supplier located in Muscat, Oman, focusing on top-notch Stainless Steel 316/316L Sheets and Plates. With a solid reputation built on reliability, precision, and a customer-first approach, the company provides products that align with international standards and meet diverse industrial needs. Renowned for its cutting-edge manufacturing techniques and rigorous quality control, Ranya Stainless guarantees outstanding durability and performance in every item. Catering to sectors like construction, marine, chemical processing, and oil & gas, the company remains a trusted ally for high-quality stainless-steel solutions throughout Oman and its neighboring regions.
Stainless Steel 316/316L Sheets and Plates are austenitic chromium-nickel stainless steels that contain 16–18% chromium, 10–14% nickel, and 2–3% molybdenum, which significantly boosts their resistance to corrosion, particularly in chloride and acidic settings. The 316L grade, with its lower carbon content, offers enhanced weldability and reduces carbide precipitation. These materials boast impressive mechanical properties, including high tensile strength, good yield strength, and remarkable toughness, even in low temperatures. Their ability to resist pitting, crevice corrosion, and oxidation makes them ideal for demanding applications where strength, durability, and long-lasting performance are crucial.
| Standard | ASTM A240, ASME SA240 |
| Thickness | 0.1mm to 12 mm Thk |
| Sheet and Plate Size | 1000 mm x 2000 mm, 1220 mm x 2440 mm, 1500 mm x 3000 mm, 2000 mm x 2000 mm, 2000 mm x 4000 mm |
| Surface | 2B, 2D, BA, NO.1, NO.4, NO.8, 8K, mirror, checkered, embossed, hair line, sandblast, Brush, etching. |
| Finish | Hot rolled (HR), Cold rolled (CR), 2B, 2D, BA NO(8), SATIN (Met with Plastic Coated). |
|
Grade |
C |
Mn |
Si |
P |
S |
Cr |
Mo |
Ni |
N |
|
|
316 |
Min |
– |
– |
– |
0 |
– |
16.0 |
2.00 |
10.0 |
– |
|
Max |
0.08 |
2.0 |
0.75 |
0.045 |
0.03 |
18.0 |
3.00 |
14.0 |
0.10 |
|
|
316L |
Min |
– |
– |
– |
– |
– |
16.0 |
2.00 |
10.0 |
– |
|
Max |
0.03 |
2.0 |
0.75 |
0.045 |
0.03 |
18.0 |
3.00 |
14.0 |
0.10 |
|
ade |
Tensile Str
(MPa) min |
Yield Str
0.2% Proof
(MPa) min |
Elong
(% in 50mm) min |
Hardness |
|
|
Rockwell B (HR B) max |
Brinell (HB) max |
||||
|
316 |
515 |
205 |
40 |
95 |
217 |
|
316L |
485 |
170 |
40 |
95 |
217 |
Contact us to get a quick quote for your requirement.

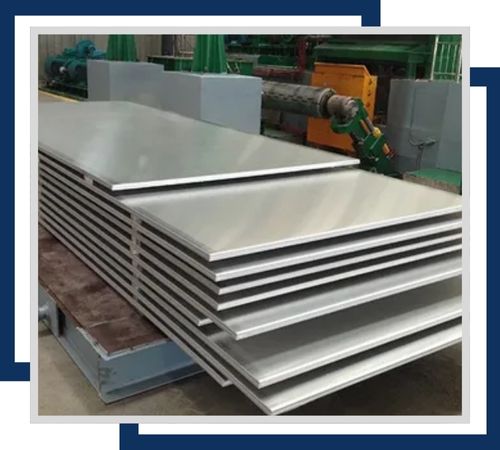

Stainless Steel 316 Hot Rolled Plates are great plates for numerous applications due to excellent corrosion resistance. The hot rolled plates available vary in size, from 4mm up to 150mm in thickness, and from 2000mm in width.

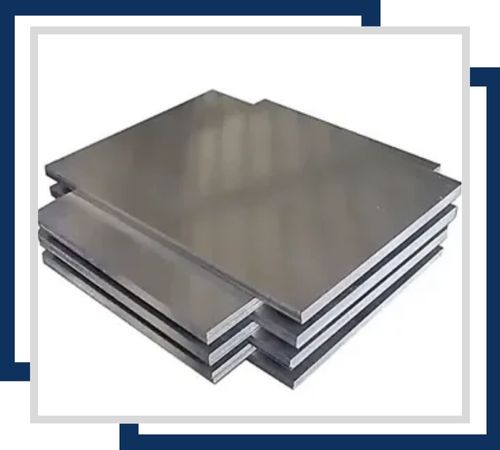

Stainless Steel 316L Cold Rolled Sheets are famous for their high corrosion resistance. The sheets come in thickness from 0.3mm to 6mm and width up to 2000mm. These sheets offer a smooth finish and are used in applications where precision and aesthetic appeal are required.

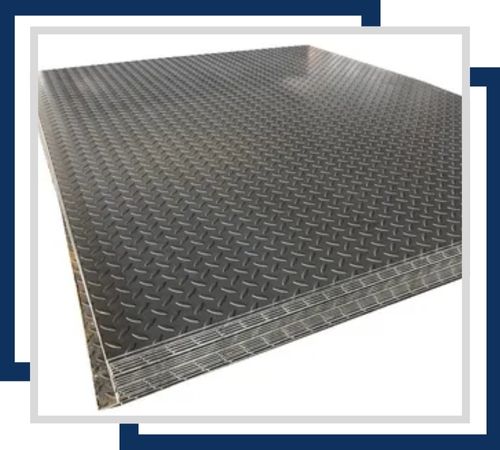

The chequered stainless steel 316L sheets have a raised diamond pattern that gives it a better grip and less slipping. The thicknesses of the sheets are from 3mm to 8mm, and sizes are up to 1500mm x 3000mm for flooring and walkways.

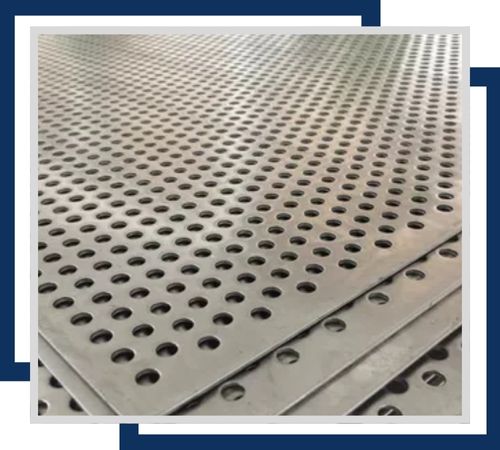

Stainless Steel 316 Perforated Plates provide superior corrosion resistance. The products are available in different thicknesses of 0.4mm to 12mm with a range of hole sizes and patterns, suitable for several industrial applications in filtration and ventilation.

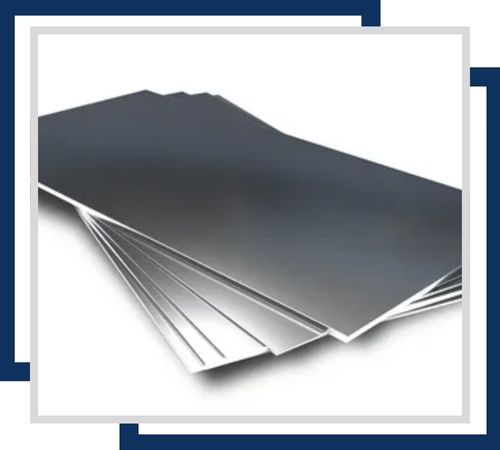

Stainless steel 316L shim sheets-very thin material, very sharp, corrosion resisting, with many applications for spacers and other alignment needs in machinery and structurals from 0.05mm up to 3mm with cut options by specific size or width.

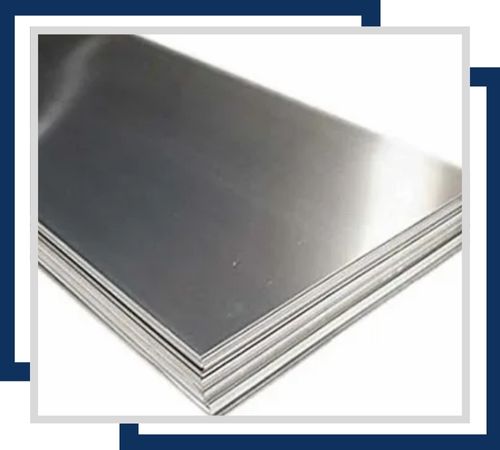

Stainless Steel 316L Polished Plates have high corrosion resistance along with a bright mirror finish. The plates come in a variety of thickness, from 0.5mm to 50mm, and sizes up to 2000mm x 6000mm for decorative purposes, architectural applications, and other heavy industrial uses.
Ranya Stainless focuses on an hassle-free experience for customers while providing rich documentation for our stainless steel sheets/plates of high-quality type 316 and 316L. We guarantee the authenticity and superior quality of our products with guaranteed documents such as commercial invoices, packing lists, fumigation certificates, heat treatment charts, quality assurance plans, and NABL-approved lab test reports. Our Stainless Steel 316/316L Sheets and Plates also come with various test certificates which include MTC in accordance with EN 10204/3.1b, PMI Test Certificates, 100% radiography test reports, and Third Party Inspection Certificates. Our company promises customer satisfaction and keeps on looking forward to the product excellence.
Stainless Steel 316/316L Sheets and Plates find extensive use across various industries thanks to their exceptional corrosion resistance, strength, and versatility. They are frequently utilized in marine settings, chemical processing equipment, pharmaceutical machinery, and food-grade applications where hygiene is paramount. In the oil & gas industry, these grades are essential for storage tanks, heat exchangers, and pipelines, ensuring safety and reliability in challenging environments. Their adaptability and robust performance make them a go-to choice for engineers and manufacturers looking for durable solutions in a wide range of applications.
