FAISAL Steel is a reputable manufacturer and supplier located in Muscat, Oman, focusing on high-quality Stainless Steel 317 Sheets and Plates. Known for their precision engineering, these sheets and plates boast outstanding corrosion resistance, durability, and top-notch performance, making them perfect for tough industrial and chemical settings. FAISAL Steel employs cutting-edge manufacturing techniques alongside rigorous quality control to ensure that their SS 317 Sheets and Plates comply with international standards. With a strong reputation for prompt delivery, technical know-how, and a customer-centric approach, the company offers dependable and long-lasting solutions for industries that demand strength, chemical resistance, and operational efficiency.
The composition of Stainless Steel 317 Sheets and Plates primarily includes chromium (18–20%), nickel (11–15%), and molybdenum (3–4%), which enhances their resistance to pitting, crevice corrosion, and oxidation in challenging chemical and high-temperature conditions. This blend guarantees excellent corrosion resistance, mechanical strength, and thermal stability. On the mechanical side, SS 317 Sheets and Plates provide high tensile and yield strength, good ductility, and stability under both thermal and mechanical stress. These attributes make them ideal for applications that require durability, chemical resistance, and structural integrity in critical industrial environments.
Specifications: ASTM A240 / ASME SA240
Dimensions: ASTM, ASME, and API.
Width: 1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm, etc
Thickness:4mm-100mm
Length : 2000mm, 2440mm, 3000mm, 5800mm, 6000mm, etc
Surface Finish: 2B, 2D, BA, NO.1, NO.4, NO.8, 8K, mirror, chequered, embossed, hairline, sand blast, Brush, etching, Hot rolled plate (HR), Cold rolled sheet (CR), SATIN (Met with Plastic Coated) etc
Form: Coils, Foils, Rolls, Plain Sheet, Shim Sheet, Perforated Sheet, Chequered Plate, Strip, Flats, Blank (Circle), Ring (Flange) etc.
|
Grade |
C |
Mn |
Si |
P |
S |
Cr |
Mo |
Ni |
Fe |
|
SS 317 |
0.08 max |
2.0 max |
1.0 max |
0.045 max |
0.030 max |
18.00 – 20.00 |
3.00 – 4.00 |
11.00 – 15.00 |
57.845 min |
|
Density |
Melting Point |
Tensile Strength |
Yield Strength (0.2%Offset) |
Elongation |
|
7.9 g/cm3 |
1400 °C (2550 °F) |
Psi – 75000, MPa – 515 |
Psi – 30000, MPa – 205 |
35 % |
Contact us to get a quick quote for your requirement.

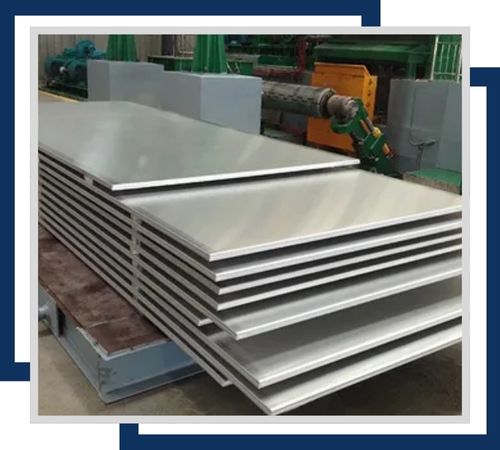

Stainless Steel 317 Hot Rolled Sheet and Plates provide excellent strength along with excellent corrosion resistance for high-temperature and aggressive chemical environments. They are used in industrial applications requiring durability and toughness.

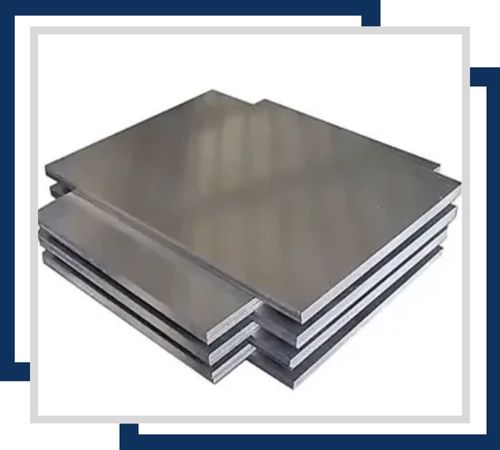

Stainless Steel 317 Cold Rolled Sheet and Plates provide a smooth surface finish and precise dimensions, suitable for any applications in chemical, marine, pharmaceutical industries with high requirements of superior corrosion resistance and aesthetic quality.

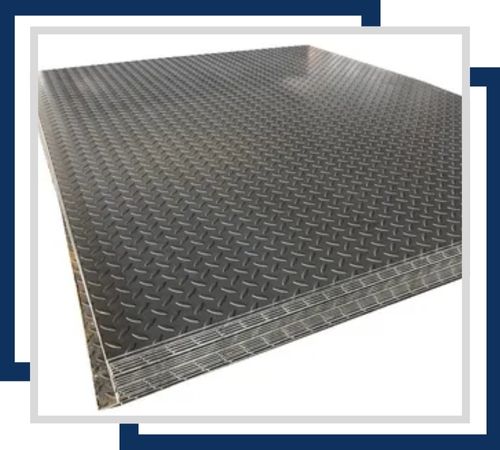

Stainless Steel 317 Chequered Sheet and Plates are used in slip-resistant and long-lasting applications like flooring and stair treads. They are excellent corrosion-resistant materials, which can be used for both industrial and decorative purposes.

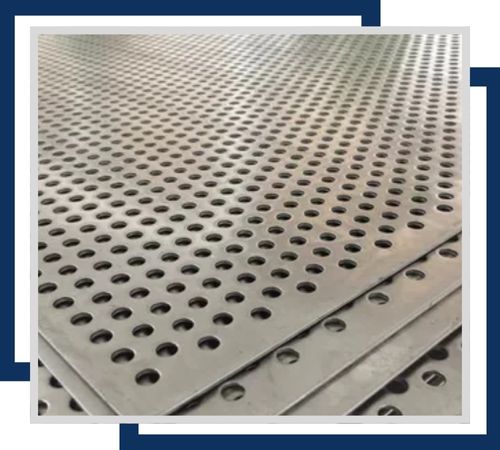

Stainless Steel 317 Perforated Sheet and Plates are used for filtration, ventilation, and architecture. It incorporates strength with the corrosion resistance capabilities of the plates along with useful perforations; hence, ideal for custom design and structural purposes in aggressive applications.

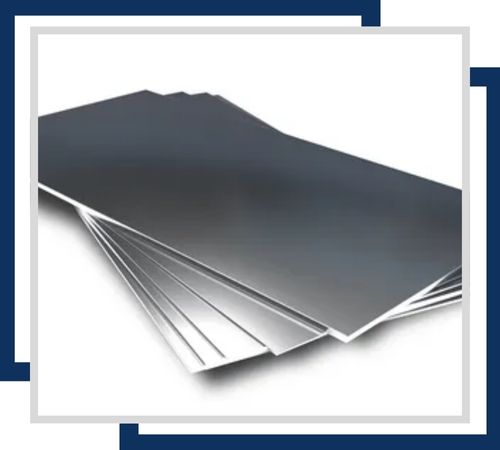

Stainless Steel 317 Shim Sheet and Plates are deployed for precision spacing and alignment within machinery and equipment. It shows high strength as well as resistant to corrosion features, thus sustaining stability and endurance in critical operations.

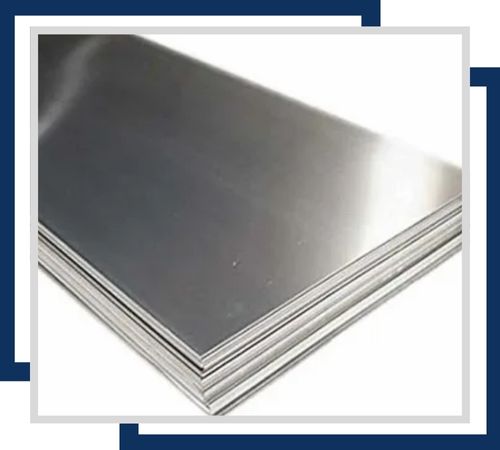

Stainless Steel 317 Polished Sheet and Plates have a very high-quality, reflective finish which is suitable for decorative and architectural applications. These have excellent corrosion resistance and are used in the environments where the appearance and durability are key requirements.
Stainless Steel 317 Sheets and Plates find extensive use in chemical processing, petrochemical plants, marine applications, pharmaceuticals, and food processing industries. They are perfect for crafting storage tanks, heat exchangers, piping systems, chemical reactors, and industrial equipment that come into contact with aggressive chemicals and corrosive substances. Their exceptional resistance to acids, chlorides, and oxidation ensures long-lasting durability and reliable performance. SS 317 Sheets and Plates deliver a strong, corrosion-resistant, and efficient solution for industrial applications that prioritize strength, safety, and high operational efficiency.
Stainless Steel 317 sheets and plates find extensive application in such industries requiring excellent corrosion resistance combined with strength. They are suited for use in chemical processing, petrochemical, pharmaceutical, etc., where aggressive chemicals are commonly exposed to high temperatures. The material is also used in conditions of marine exposure, heat exchangers, and pulp and paper production because of the excellent resistance to pitting and crevice corrosion.
