Ranya Stainless is a reputable manufacturer and supplier based in Muscat, Oman, specializing in top-notch Stainless Steel 904L Sheets and Plates for a variety of industrial applications. The company has built a solid reputation for providing products that adhere to international standards, with a strong emphasis on quality, durability, and customer satisfaction. The Stainless Steel 904L Sheets and Plates from Ranya Stainless are highly regarded for their exceptional corrosion resistance, strength, and longevity, making them perfect for even the most demanding environments. Thanks to their advanced manufacturing processes and rigorous quality control, Ranya Stainless proudly serves clients throughout Oman and the Middle East with dependable, high-performance stainless steel solutions.
These Stainless Steel 904L Sheets and Plates are crafted from a high-alloy austenitic stainless steel that features low carbon content along with elevated levels of nickel, chromium, and molybdenum. The typical composition includes 19–23% chromium, 23–28% nickel, 4–5% molybdenum, and trace amounts of copper, all of which enhance corrosion resistance in harsh acids and chloride-rich environments. On the mechanical side, 904L boasts impressive tensile strength, good yield strength, and high elongation, which ensures flexibility during forming and fabrication. This alloy remains stable at high temperatures and offers remarkable toughness, making these sheets and plates perfect for heavy-duty industrial uses.
| Standard | ASTM A240, ASME SA240 |
| Thickness | 0.1mm to 12 mm Thk |
| Sheet and Plate Size | 1000 mm x 2000 mm, 1220 mm x 2440 mm, 1500 mm x 3000 mm, 2000 mm x 2000 mm, 2000 mm x 4000 mm |
| Surface | 2B, 2D, BA, NO.1, NO.4, NO.8, 8K, mirror, checkered, embossed, hair line, sandblast, Brush, etching. |
| Finish | Hot rolled (HR), Cold rolled (CR), 2B, 2D, BA NO(8), SATIN (Met with Plastic Coated). |
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | Cu |
| SS 904L | 0.020 max | 2 max | 1 max | 0.040 max | 0.030 max | 19 – 23 | 4 – 5 | 23 – 28 | 1 – 2 |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 7.95 g/cm3 | 1350 °C (2460 °F) | Psi – 71000 , MPa – 490 | Psi – 32000 , MPa – 220 | 35 % |
Contact us to get a quick quote for your requirement.

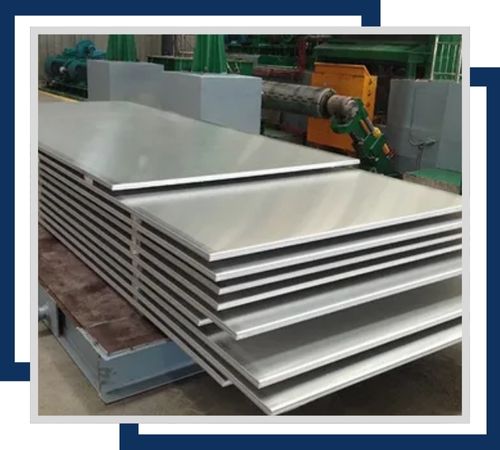

Stainless Steel 904L hot rolled sheets exhibit excellent corrosion resistance in aggressive conditions, such as acids and chlorides. Thicknesses range between 3mm to 25mm, while widths can be up to 2 meters in size. This sheet is employed in heavy-duty applications where robust structural integrity is demanded.

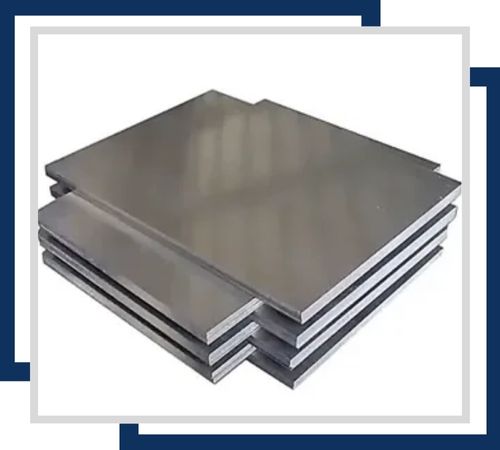

Stainless Steel 904L Cold Rolled Plates are alloyed with austenitic with excellent corrosion protection against strong acids and chlorides. These 904L sheets are available up to 0.5-3 mm, with widths ranging up to 1.5 meters. Plates are also featured with a highly smooth surface polish that can use for precise aesthetics.

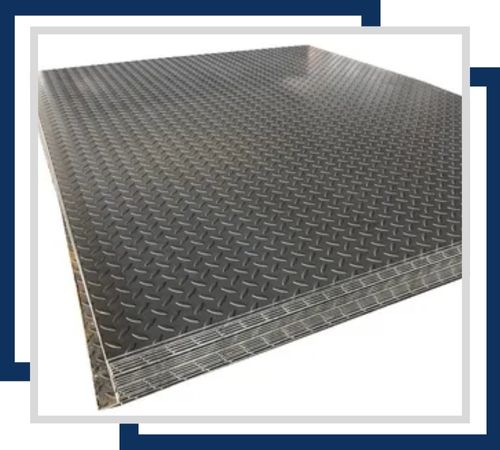

Stainless Steel 904L Chequered Sheets have a patterned surface that enhances slip resistance while maintaining excellent corrosion resistance. Available in common thicknesses of 2 mm to 6 mm and up to 1.2 meters in width, these sheets are ideal for flooring and other high-traction surfaces.

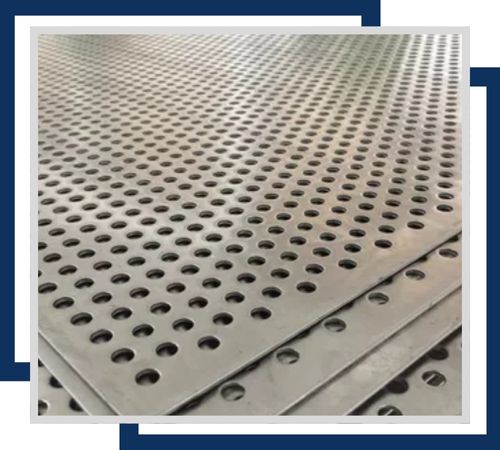

Stainless steel perforated plates from the 904L grade combine corrosion resistance with customized perforation patterns for ventilation and filtration. Thicknesses range from 1 mm to 8 mm, and the size up to 1.2 meters by 2.4 meters accommodates industrial and architectural applications.

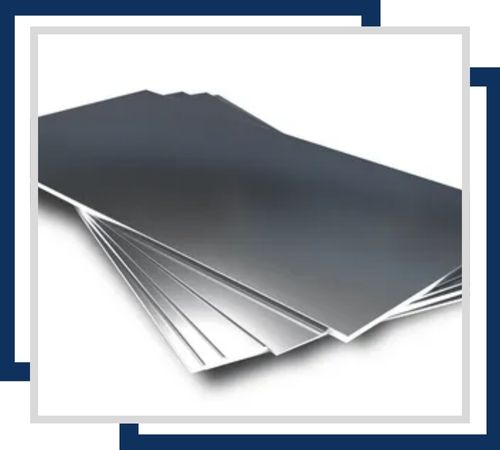

Stainless Steel 904L Shim Sheets are excellent resistance to aggressive environments and precise thicknesses for the application. Normally available in a thickness range from 0.1 mm up to 3 mm and size up to 1 meter by 2 meters, these sheets are used for gap filling and alignment.

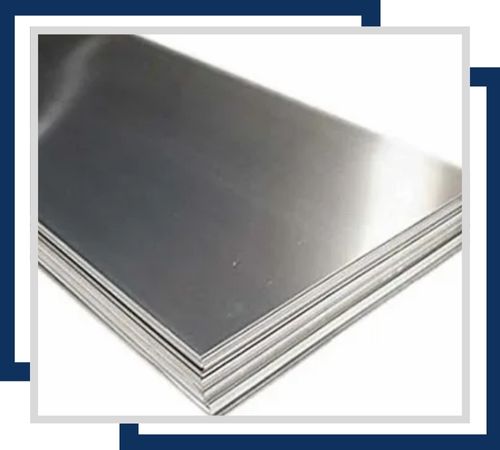

Stainless Steel 904L Polished Plates are known for their excellent finish and high corrosion resistance. They are very suitable for decorative and high-end applications. Thicknesses available are from 1 mm to 50 mm, and the maximum dimensions can go up to 2 meters by 6 meters, making them aesthetically pleasing and durable.
Ranya Stainless is committed to providing an experience of excellence to all its customers who purchase our Premium Quality Stainless Steel 904L Sheets and Plates by providing complete documents. We send the commercial invoice, packing list, fumigation certificate, heat treatment chart, quality assurance plan, and NABL-approved lab test report, which certifies the originality and high quality of our products. To further boost the confidence of our clients, we provide the Stainless Steel 904L Sheets and Plates with a range of test certificates, such as MTC as per EN 10204/3.1b, PMI Test Certificate, 100% radiography test report, and Third Party Inspection Certificate. We express our promising commitment to our customers in terms of satisfaction, and on going to evolve into excellence in product quality.
Stainless Steel 904L Sheets and Plates find extensive application in industries that demand outstanding corrosion resistance and long-lasting durability. They are particularly well-suited for chemical processing equipment, storage tanks, and reactors that come into contact with strong acids. In the oil and gas industry, they are essential for offshore structures, pipelines, and refinery components due to their resistance to chloride stress corrosion cracking. The marine sector also relies on them for seawater handling systems, desalination plants, and shipbuilding. Furthermore, these plates and sheets are utilized in pharmaceutical applications, ensuring that they meet the rigorous standards required in that field.
