Ranya Stainless, located in Muscat, Oman, stands out as a top manufacturer and supplier of premium stainless steel products, including 17-7 PH stainless steel sheets and plates. Renowned for crafting materials that adhere to international standards, Ranya Stainless offers sheets and plates that boast remarkable corrosion resistance, impressive tensile strength, and outstanding fatigue resistance. Catering to sectors like aerospace, chemical processing, power generation, and heavy fabrication, the company provides products designed for durability, precision, and long-lasting performance. Thanks to cutting-edge production methods and rigorous quality control, Ranya Stainless has earned a reputation as a reliable supplier of stainless steel throughout Oman and the GCC region.
The 17-7 PH stainless steel sheets and plates are crafted from a chromium-nickel-aluminum precipitation-hardening alloy, which contains about 16–18% chromium, 6.5–7.75% nickel, and 0.75–1.50% aluminum, along with carbon ≤ 0.09% and trace amounts of manganese, silicon, phosphorus, and sulfur. In their annealed state, they are ductile and easy to form, exhibiting moderate tensile strength and elongation. After undergoing precipitation-hardening heat treatment, they achieve exceptional tensile strength, impressive hardness, and superior fatigue resistance, all while maintaining good corrosion resistance in fresh water, industrial settings, and mild marine environments.
| Element | Content (%) |
|---|---|
| Chromium, Cr | 16-18 |
| Nickel, Ni | 6.50 – 7.75 |
| Manganese, Mn | 1 max |
| Silicon, Si | 1 max |
| Aluminum, Al | 0.75 – 1.50 |
| Carbon, C | 0.09 max |
| Phosphorous, P | 0.040 max |
| Sulfur, S | 0.030 max |
| Iron, Fe | Balance |
| Property | 17-7PH ≤ 0.010 inch thick | 17-7PH > 0.010 inch thick |
|---|---|---|
| Yield Strength, min. (ksi) | 65 | 55 |
| Tensile Strength, min. (ksi) | 150 | 150 |
| Elongation, min. (%) | – | 20 |
| Hardness, max. (Rb) | – | 92 |
Contact us to get a quick quote for your requirement.

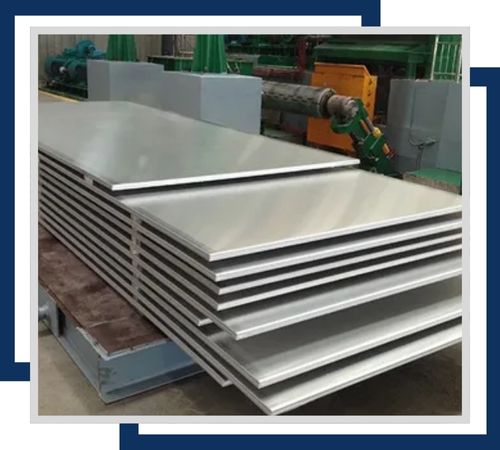

Stainless Steel 17-7 PH Hot Rolled Plates are characterized by excellent strength and hardness. Available in a range of sizes and thicknesses from 3mm to 120mm, the plates have good corrosion resistance and can be used under high-stress conditions.

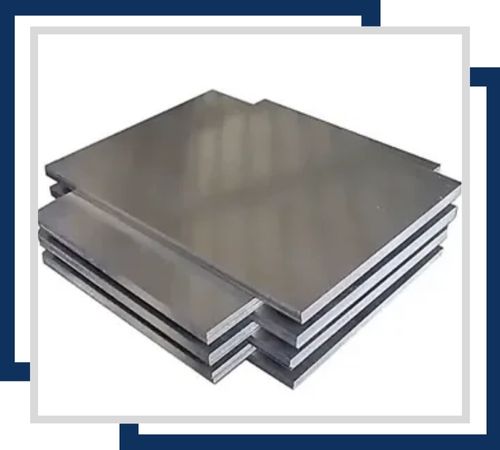

Stainless Steel 17-7 PH Cold Rolled Sheets have a very smooth surface finish and high precision. These sheets are available in a range of thickness from 0.2mm to 6mm. The sheets possess excellent corrosion resistance and are useful for applications that require tight tolerances.

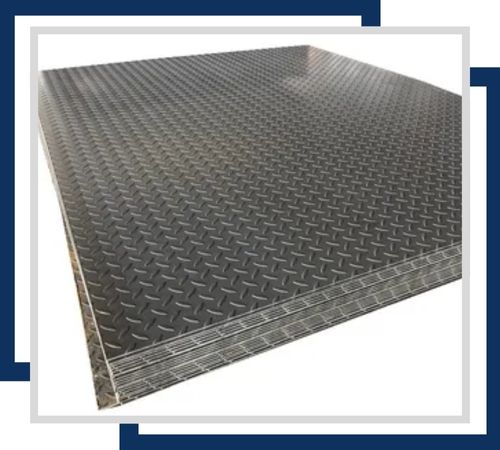

Stainless steel 17-7 PH chequered plates have a raised pattern that increases the grip and safety. It is commercially available from 2mm to 12mm in thicknesses. It is applied in flooring and other anti-skid applications. Their good corrosion resistance suits them well for both industrial and marine environments.

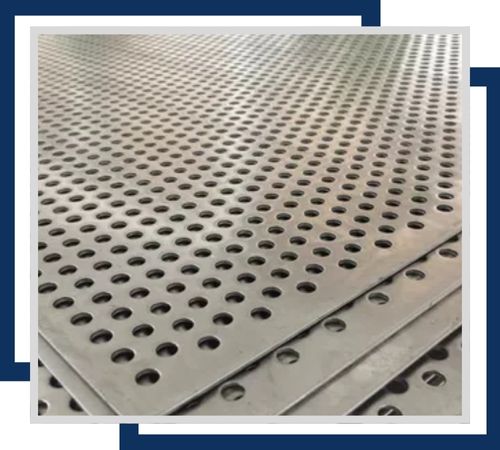

The Stainless Steel 17-7 PH Perforated Sheets have many hole sizes and patterns for various filtration and ventilation applications. They are typically in the thickness of 0.3mm to 3mm. Corrosion resistance allows these sheets to be long-lasting in all uses.

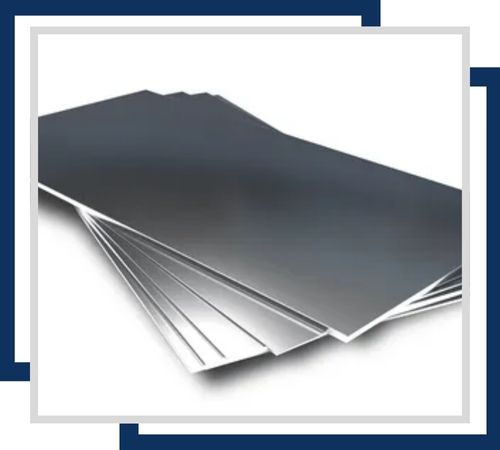

Stainless Steel 17-7 PH Shim Sheet is a thin, precision-cut sheet for spacing and alignment in machinery. It is available in 0.05mm to 3mm thicknesses, giving excellent corrosion resistance. Its sheets ensure reliable performance in very demanding mechanical environments.

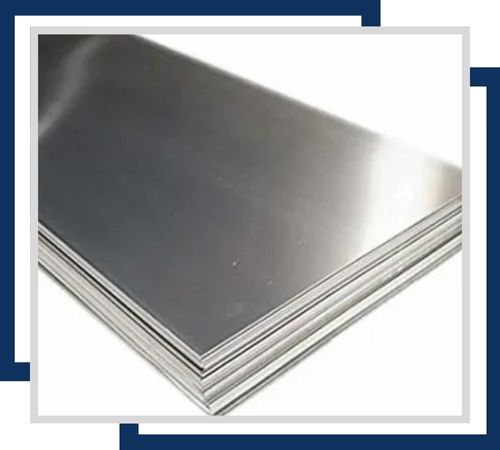

Stainless Steel 17-7 PH Polished Plates have a bright polish finish. They come in thickness from 3mm up to 100mm. These plates exhibit strong corrosion resistance. They are good for decorative and sanitary applications.
Ranya Stainless is committed to providing a great customer experience by offering full documentation for its high-quality Stainless Steel 17-7 PH Sheets and Plates. We provide important documents like commercial invoices, packing lists, fumigation certificates, heat treatment charts, quality assurance plans, and NABL-approved lab test reports to prove authenticity and give strength to our superior quality. Moreover, our Stainless Steel 17-7 PH Sheets and Plates are provided with many test certificates like MTC as per EN 10204/3.1b, PMI Test Certificate, 100% radiography test report, and Third Party Inspection Certificate. These records assuredly ensure our customer satisfaction and constant product excellence.
These 17-7 PH stainless steel sheets and plates find extensive use in aerospace structural components, chemical-processing equipment, pressure vessels, heat exchangers, power-plant components, springs, and load-bearing industrial applications. Their unique blend of high strength, corrosion resistance, and formability makes them perfect for applications that demand durability, precision, and long-term performance in challenging environments.
