Ranya Stainless is a reputable manufacturer and supplier located in Muscat, Oman, focusing on high-quality Stainless Steel 347/347H Sheets and Plates. With a strong dedication to precision, durability, and customer satisfaction, the company offers products designed to meet international industrial standards. Ranya Stainless guarantees top-notch performance through cutting-edge manufacturing methods, rigorous quality control, and dependable material sourcing. Their Stainless Steel 347/347H Sheets and Plates are celebrated for their outstanding corrosion resistance, high-temperature stability, and long-lasting service life. Catering to various industries throughout Oman and the Middle East, Ranya Stainless consistently provides innovative solutions tailored to meet the demands of challenging operational environments.
Stainless Steel 347/347H Sheets and Plates are stabilized austenitic alloys that include chromium, nickel, and columbium (niobium), which provide remarkable resistance to intergranular corrosion. The 347H grade has a higher carbon content, enhancing its strength at high temperatures and its resistance to creep. These alloys typically showcase high tensile strength, good yield strength, and excellent elongation, ensuring they can withstand thermal stress. Their mechanical properties remain consistent even in elevated-temperature conditions, making them perfect for applications that involve pressure and heat exposure. The well-balanced composition guarantees reliable performance in demanding industrial environments.
Stainless Steel Sheets and Plates Specification : ASTM A240 / ASME SA240
Dimension Standard : JIS, AISI, ASTM, GB, DIN, EN, etc
Width : 1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm, etc
Length : 2000mm, 2440mm, 3000mm, 5800mm, 6000mm, etc
Thickness : 0.3 mm to 120 mm
Form : Coils, Foils, Rolls, Plain Sheet, Shim Sheet, Perforated Sheet, Chequered Plate, Strip, Flats, Blank (Circle), Ring (Flange) etc.
Surface Finishing : Hot rolled plate (HR), Cold rolled sheet (CR),2B, 2D, BA, NO.1, NO.4, NO.8, 8K, mirror, Chequered, embossed, hair line, sand blast, Brush, etching, SATIN (Met with Plastic Coated) etc.
| C | Cr | Mn | Ni | P | S | Si | Cb/Ta | |
|---|---|---|---|---|---|---|---|---|
| 347 | 0.08 max | min: 17.0 max: 20.0 | 2.0 max | min: 9.0 max: 13.0 | 0.04 max | 0.30 max | 0.75 max | min:10x C max: 1.0 |
| 347H | min: 0.04 max: 0.10 | min: 17.0 max: 20.0 | 2.0 max | min: 9.0 max: 13.0 | 0.03 max | 0.30 max | 0.75 max | min:10x C max: 1.0 |
| Grade | Tensile Strength ksi (MPa) min | Yield Strength 0.2% ksi offset ksi (MPa) min | Elongation (% in 50mm) min | Hardness (Brinell) MAX | Hardness (Rockwell B) MAX |
|---|---|---|---|---|---|
| 347/347H | 75 (515) | 30 (205) | 40 | 201 | 95 |
Contact us to get a quick quote for your requirement.

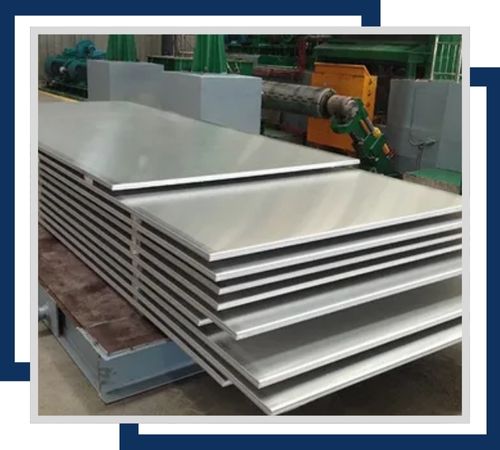

Known for excellent corrosion resistance, these sheets are produced through hot rolling. They are available in thicknesses from 3mm to 50mm and widths up to 2000mm, providing durability in high-temperature environments and are used in heavy-duty applications

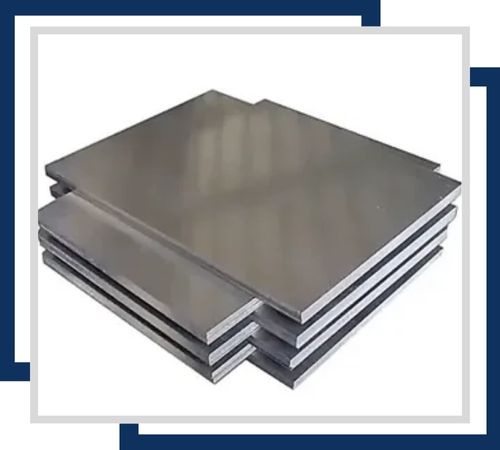

These plates are cold-rolled for a smooth finish and have superior corrosion resistance. They are available in thicknesses ranging from 0.5mm to 12mm and widths up to 1500mm, which is ideal for precision applications and structural components.

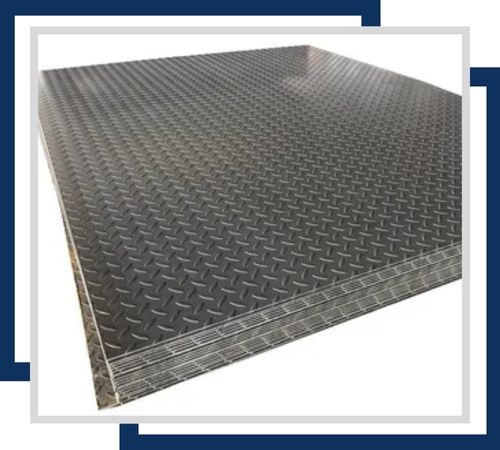

These plates offer excellent corrosion resistance, with a patterned surface for better traction and safety. They are available in various thicknesses, from 1.5mm to 6mm, and up to 1500mm in width, which makes them useful for flooring and industrial applications.

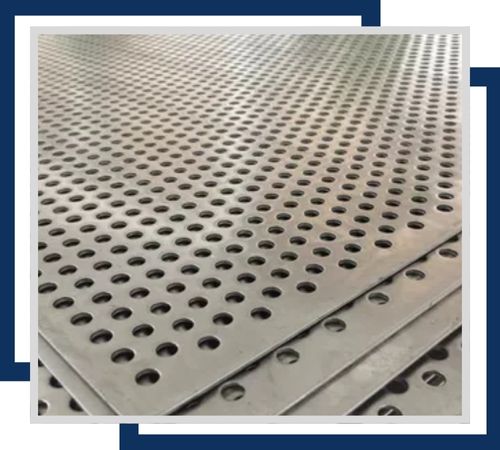

Offering high corrosion resistance, the sheets are perforated in a variety of hole patterns to achieve ventilation and aesthetics. Typical thicknesses vary between 0.5mm to 6mm, while the width may be up to 2000mm for filter applications and decorative panels.

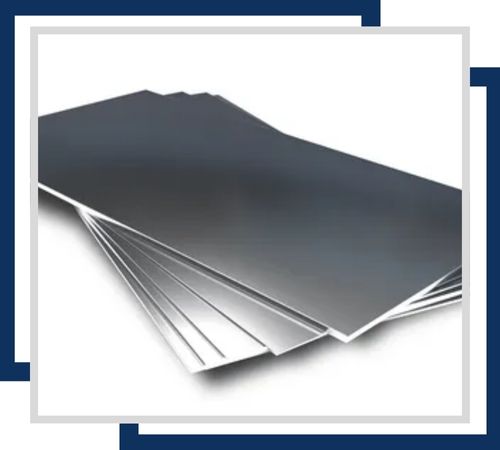

The shim sheets have excellent corrosion resistance. Thickness can range from 0.1mm to 2mm, width up to 1000mm, and are precision cut for exact measurements. They are used where fine adjustments are necessary.

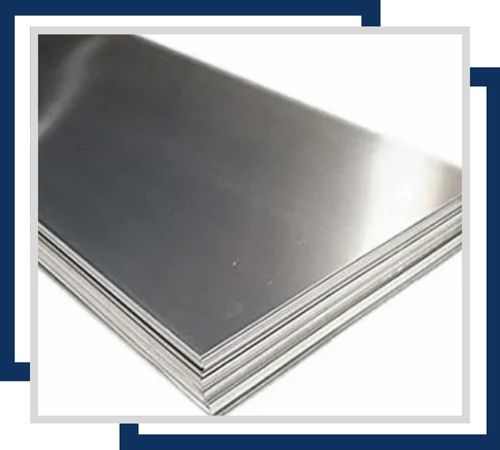

These plates feature outstanding corrosion resistance, and have a polished surface for enhanced appearance and cleanliness. They are available in widely used thicknesses that range from 3mm to 25mm and widths up to 2000mm. They find applications mainly in decorative and sanitary use.
Ranya Stainless will provide customers with an unmatched customer experience based on complete documentation about our superior Stainless Steel 347 and 347H sheets and plates. Essential documents including commercial invoices, packing lists, fumigation certificates, heat treatment charts, quality assurance plans, and NABL-approved lab test reports shall be provided from time to time by us in our products that ascertain the genuity and exceptional quality of products supplied to the valuable customers. Our Stainless Steel 347/347H sheets and plates also include a test certificate: MTC as per EN 10204/3.1b, PMI Test Certificates, 100% radiography test reports, and Third Party Inspection Certificates, in regard to our strict quality commitment toward our valued clients.
Stainless Steel 347/347H Sheets and Plates find extensive use in industries that demand exceptional heat resistance and structural integrity. They are particularly suited for high-temperature chemical processing equipment, petroleum refineries, boilers, and heat exchangers. These materials also perform reliably in exhaust manifolds, furnace components, and systems within thermal power plants. Their versatility and durability make them a go-to choice for various applications, ensuring they meet the rigorous demands of the industry while maintaining performance and safety standards.
