Ranya Stainless, located in Muscat, Oman, is a trusted manufacturer and supplier of premium stainless steel products, offering reliable solutions for diverse industrial applications. Specializing in Stainless Steel 317L Sheet and Plates, the company provides materials that combine excellent corrosion resistance, strength, and long-term durability. With advanced production facilities, precision engineering, and stringent quality control, Ranya Stainless ensures that every sheet and plate meets international standards. Known for timely delivery, consistent product quality, and superior customer service, the company has earned a reputation as a reliable source for stainless steel sheets and plates across Oman and neighboring regions.
Stainless Steel 317L Sheet and Plates are made from a low-carbon austenitic stainless steel alloy containing chromium (18–20%), nickel (11–15%), and molybdenum (3–4%) to enhance resistance to corrosion and pitting. The low carbon content prevents sensitization during welding, ensuring long-term stability and durability. These sheets and plates offer tensile strength ranging from 485–620 MPa, yield strength of 170–310 MPa, and excellent toughness and ductility. Stainless Steel 317L provides good formability, weldability, and resistance to high-temperature oxidation, making it suitable for critical industrial and chemical processing applications.
Stainless Steel Sheets and Plates Specification : ASTM A240 / ASME SA240
Dimension Standard : JIS, AISI, ASTM, GB, DIN, EN, etc
Width : 1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm, etc
Length : 2000mm, 2440mm, 3000mm, 5800mm, 6000mm, etc
Thickness : 0.3 mm to 120 mm
Form : Coils, Foils, Rolls, Plain Sheet, Shim Sheet, Perforated Sheet, Chequered Plate, Strip, Flats, Blank (Circle), Ring (Flange) etc.
Surface Finishing : Hot rolled plate (HR), Cold rolled sheet (CR),2B, 2D, BA, NO.1, NO.4, NO.8, 8K, mirror, Chequered, embossed, hair line, sand blast, Brush, etching, SATIN (Met with Plastic Coated) etc.
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N |
|---|---|---|---|---|---|---|---|---|---|
| 317L | 0.035 max | 2 max | 1 max | 0.040 max | 0.03 max | 18 – 20 | 3 – 4 | 11 – 15 | – |
| Density | 8.0 g/cm3 |
|---|---|
| Melting Point | 1454 °C (2650 °F) |
| Tensile Strength | Psi – 75000 , MPa – 515 |
| Yield Strength (0.2%Offset) | Psi – 30000 , MPa – 205 |
| Elongation | 35 % |
Contact us to get a quick quote for your requirement.

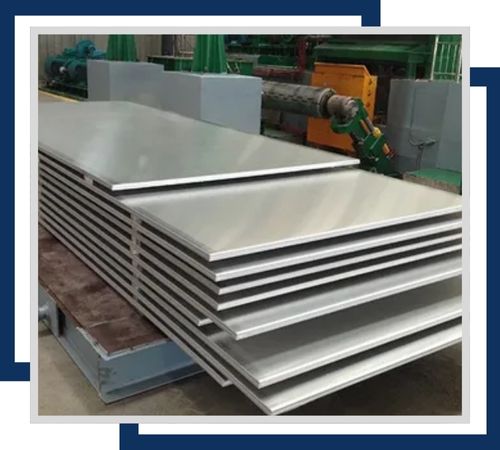

High resistance to corrosion by chlorides and acids available as sheets and plates from a thickness of 3mm to 100mm in width to 2 meters. The hot-rolled product allows heavy usage because it produces a tough and durable finish.

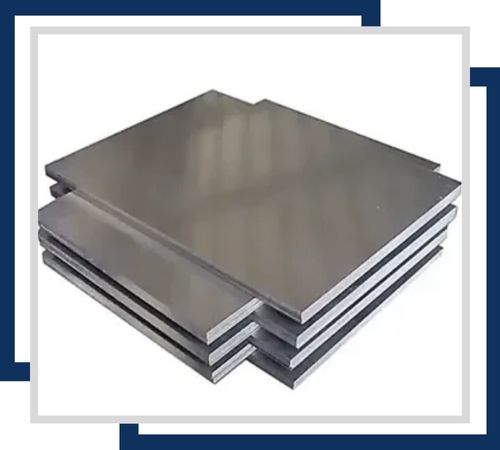

With high corrosion resistance, the cold rolling provides cold rolled sheets and plates that range in thickness from 0.3mm to 6mm, with widths reaching up to 1.5 meters. In the case of cold rolling, it leaves the surface very smooth and precise for aesthetic and high-precision uses.

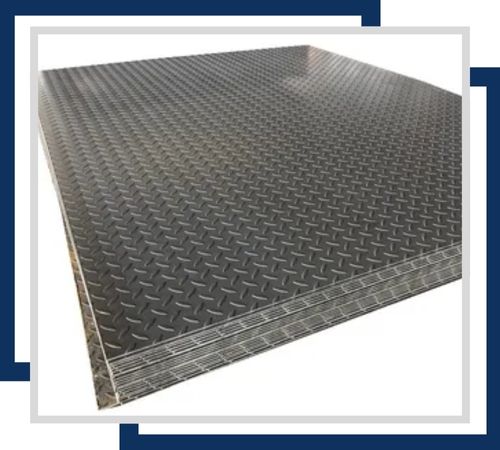

They have been designed with the patterned surface for superior friction and slip resistance. Chequered sheets and plates provide superior resistance to corrosion. These products are available from 1.5mm up to 6mm thickness in custom sizes as per application requirements.

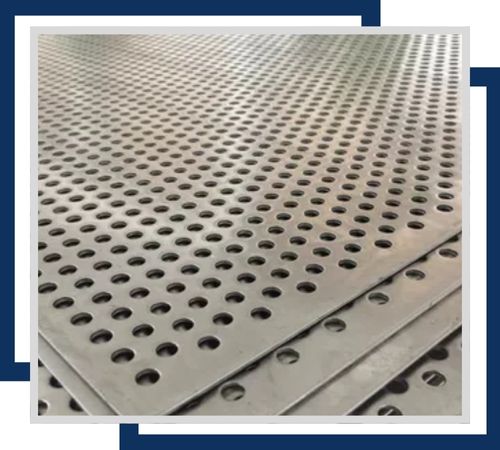

These sheets and plates are superior in corrosion resistance and perforated holes for ventilation, filtering, and aesthetic purposes. Common sizes range from 0.5mm to 6mm thick, and custom hole patterns and diameter sizes are offered according to several industrial and architectural needs.

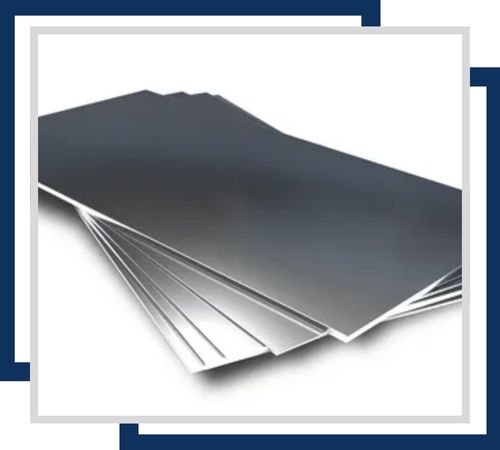

Shim sheets and plates are highly resistant to corrosion and are used for precise spacing and alignment. They are thin gauges usually from 0.1mm to 3mm thick, but may be customized in dimensions according to the particular mechanical and industrial application.

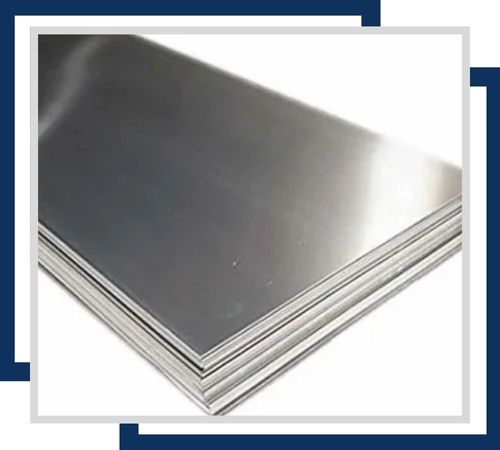

They come with great corrosion resistance as well as the option of polishing to a mirror finish for aesthetic use, suitable in decorative or high-visibility applications. The sheets and plates range in thickness from 0.5mm to 12mm.
We, at Ranya Stainless, ensure a completely hassle-free experience to our customer while providing documentation with our premium range of Stainless Steel 317L Sheets and Plates . Our pack consists of the commercial invoice, packing list, fumigation certificate, heat treatment chart, quality assurance plan, and NABL-approved lab test report. The quality and authenticity of our product get authenticated due to these documents, which then brings trust and confidence in the mind of our client. We also provide test certificate for our Stainless Steel 317L Sheets and Plates, like an MTC as per EN 10204/3.1b, PMI Test Certificate, 100% radiography test report, and Third Party Inspection Certificate. These certificates indicate our relentless pursuit of client satisfaction and our quest for excellence in the quality of the product.
Stainless Steel 317L Sheet and Plates are widely used in industries that demand corrosion-resistant, durable, and high-strength materials. They are commonly applied in chemical processing equipment, petrochemical plants, oil and gas systems, and pharmaceutical machinery due to their ability to withstand harsh chemical environments. These sheets and plates are also used in marine structures, food and beverage processing, water treatment systems, and heat exchangers. Their durability, resistance to pitting, and ease of fabrication make them suitable for structural applications, industrial equipment, and hygienic processing systems. Stainless Steel 317L Sheet and Plates provide reliable performance, safety, and long-term service in challenging conditions.
